SlideControl 2.0

Flow monitoring on air slides

Microwave sensor for contactless monitoring of material flow in air slides. Easy to install, it gives trending information by 4โ€ฆ 20mA output

FEATURES AND BENEFITS

  • Microwave sensor for contactless material flow measurements in air slides.
  • Fast recognition of Flow/No Flow conditions
  • Easy to install
  • No installations into the process
  • 4 . . . 20 mA trend signal for the flow rate
  • Easy retrofitting
  • Monitors the material flow in the slide without any contact

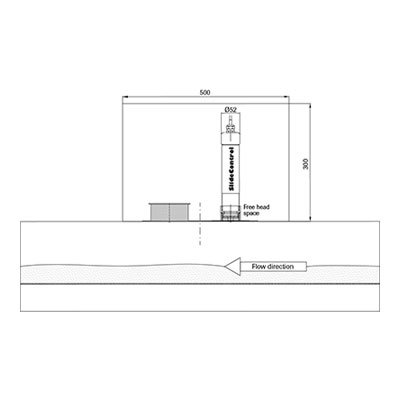

  • Easy and retrofit installation on the air slide
  • 4 . . . 20 mA-trendsignal for the flow rate
  • Contact-free
    ย
    ย
    ย

MAIN APPLICATIONS

  • Cement
  • Asphalt
  • Minerals
  • Steel
ย
ย

TECHNICAL INFORMATION

Housing material

Stainless steel 1.4571

Protection Type

IP 65

Process temperature

-20โ€ฆ+80 ยฐC / -20โ€ฆ+220 ยฐC (with process adapter)

Ambient temperature

-20โ€ฆ+60 ยฐC

Working pressure

Max. 1 bar

Power supply

18โ€ฆ24 V DC / AC powered by transmitter

Measuring frequency

24.125 GHz; ยฑ 100 MHz

Transmitting power

Max. 5 mW

Weight

1.0 kg

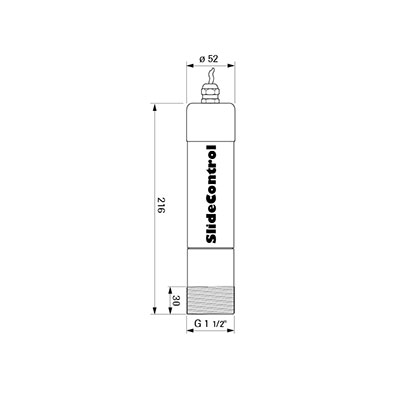

Dimensions

Enclosure: length of 216 mm / diameter of 52 mm Thread: length of 30 mm / diameter of G 1ยฝ
