PicoFlow
Mass flow measurement dry bulk solids, Mass flow measurement free fall conveying, Mass flow measurement inclined conveying
Flow Measurement at low solid/air ratios
Perfectly adapted for control and regulation of reagent in flue gas treatment and transport lines with very low material concentration.
Electrodynamic flow sensor for measurement of low flow rates.
For pipe diameters up to 1 m.

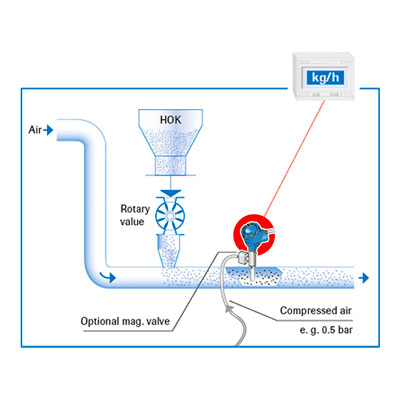

Ideally used in leanphase conveying.
In free fall conditions with at least 2 m/s drop speed.
- suitable for very low concentrations

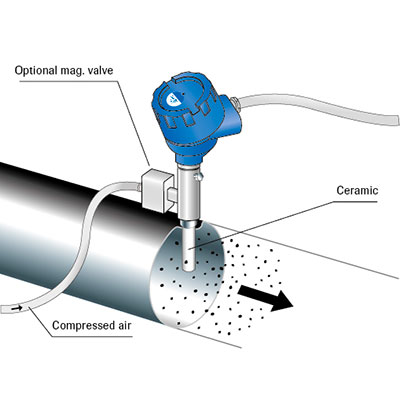

- ceramic coating preventing sensor wear
Measurement of low flow rates
FEATURES AND BENEFITS
- Most non-metallic solids can be measured
- Can be installed on round pipes or ducts
- No real upper limit of mass flow
- Maximum pressure 10 bar
- Dust tight
- No flow restrictions to the process flow (wear resistant ceramic liner)
- The mass flow measurement is independent of flow characteristics
- Maximum temperature, 12O °C
- Can be installed at an angle
- Small footprint, 220 mm (DN 100), 290 mm (DN 150), 310 mm (DN 200)
- No moving parts, hence no maintenance
MAIN APPLICATIONS
- The PicoFlow is perfectly suited for industrial applications especially in power generation or cement plants where it can be used to regulate or control additional reagent in flue gas treatment: injection of activated carbon, minsorb, lignite coke…
- Waste incineration
- Steel
- Chemistry
- Energy
- Cement
- Pharma
TECHNICAL INFORMATION
Material to measure
Dust, powders or granulates max grain size 10 mm
Working principle
Electrodynamic
Process pressure
max. 10 bar
Process temperature
+150°C

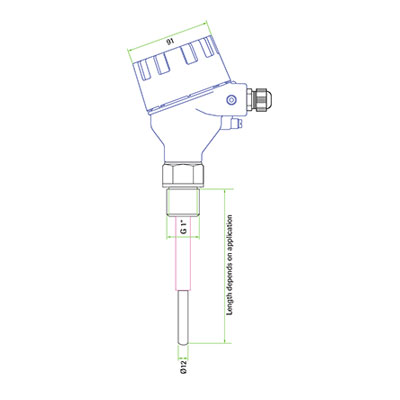

Mounting
Via process connection
Type of Conveying
Pneumatic leanphase, vertical freefall after feeder
Flow rates
Depending on application
Pipe diameter
Max. 1000 mm
ATEX rating
Category 1/2
Output
4…20mA, Modbus, Profibus
